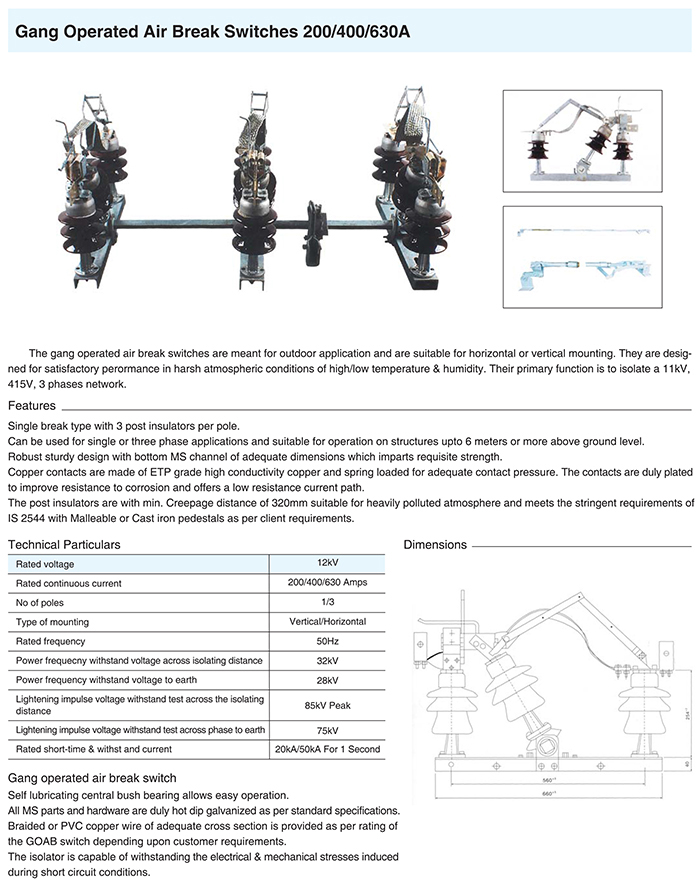

 Gang Operated Air Break Switches 200/400/630A
 章
 The gang operated air break swiches are meant for ouldoor aplication and are suitable for horizontal or verical mounting. They are desig.ned for satisfactory perormance in harsh atmospheric conditions of high/ow temperature & humidity. Their primary function is to isolate a 11KV,415V, 3 phases network.Features
 Single break type with 3 post insulators per pole.
 Can be used for single or three phase applications and suitable for operation on sructures uplo 6 meters or more above ground level.Robust sturdy design with bottom MS channel of adequate dimensions which imparts requisile strengh.
 Copper contacts are made of ETP grade high conductivity copper and spring loaded for adequate contact pressure. The contacts are duly platedto improve resistance to corrosion and ofers a low resistance current path.
 The post insulators are with min, Creepage distance of 320mm suitable for heavily polluted atmosphere and meets the sringent requirements ofIS 2544 with Malleable or Cast iron pedestals as per client requirements.
 Technical Particulars  DimensionsRated volage  12kV
 Rated continuous crrent  2004001630 AmpsNo of poles  13
 Type of mounting  VericalHorizontal
 Rated tequencey  50Hz  回里
 Power frequecny withstand vltage across isolating distance  32kV
 Power frequenoy withstand vllage to earth  28kV  中的
 Lightening impulse vol lage withstand test across the slating  85kV Peak  带在  益
 distance
 Lighening impulse vlage withstand tes across phase 10 eath  75kV
 Rated shot.time & withs! and crrent  20KAV5OkA For 1 Second  当

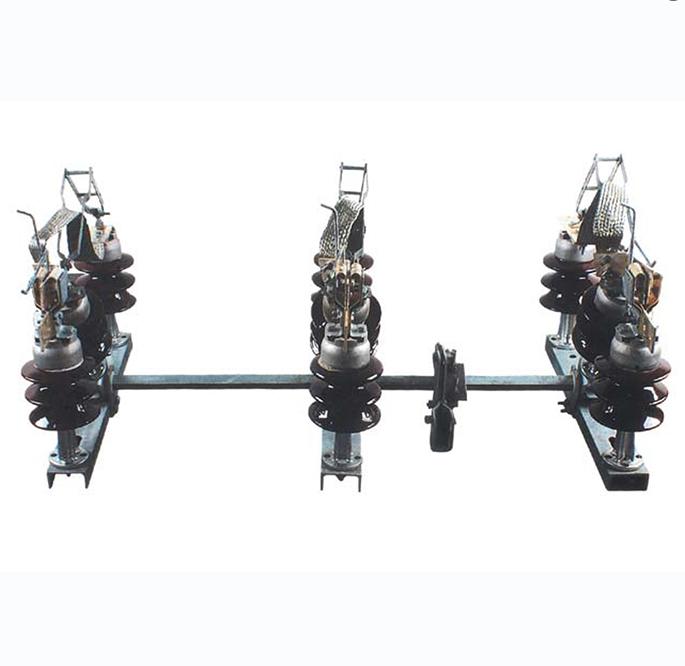

 Gang operated air break switch
 Self lubricating central bush bearing llows easy operation.
 All MS parts and hardware are duly hot dip galvanized as per standard specifications.Braided or PVC copper wire of adequate cross section is provided as per rating of
 the GOAB switch depending upon customer requirements.
 The isolator is capable of withstanding the elecrical & mechanical stresses inducedduring short circuit conditions.
